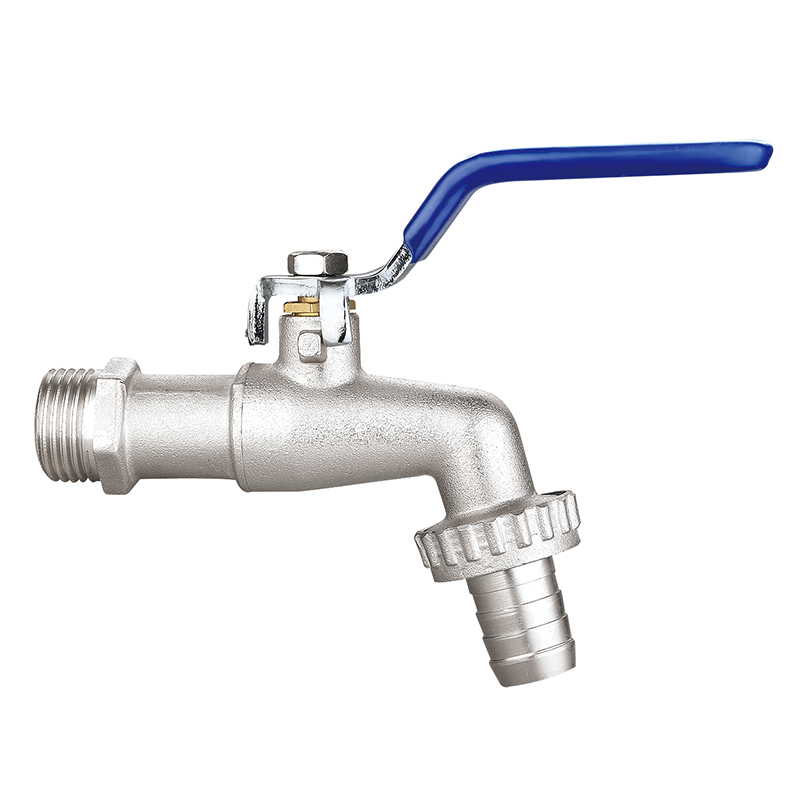

Bibcocks, also known as hose bibs or sillcocks, are specialized valves designed for controlling the flow of water in outdoor and indoor applications. These valves are typically installed on the exterior of buildings, providing a convenient water source for gardening, cleaning, and other outdoor activities. The design of bibcocks includes a threaded spout, allowing for easy attachment of hoses or other water delivery systems. They are equipped with a handle or lever for manual operation, enabling precise control over water flow. The installation of bibcocks is straightforward, making them a practical choice for both residential and commercial properties. Regular maintenance, such as checking for leaks and replacing worn-out washers, ensures the longevity and optimal performance of bibcocks. Their reliability and ease of use make bibcocks an indispensable component in water management systems.

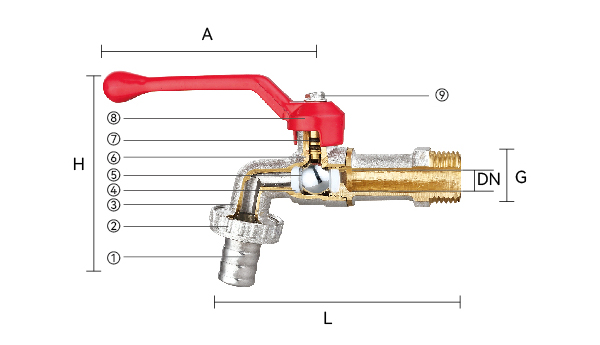

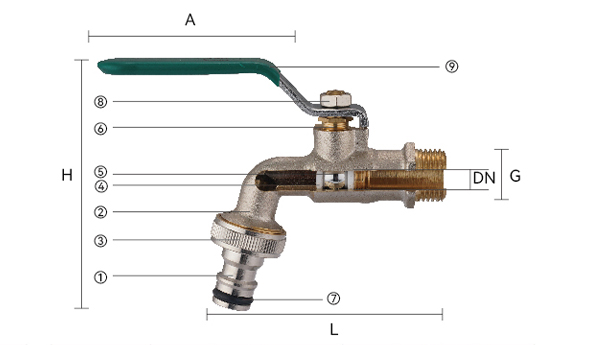

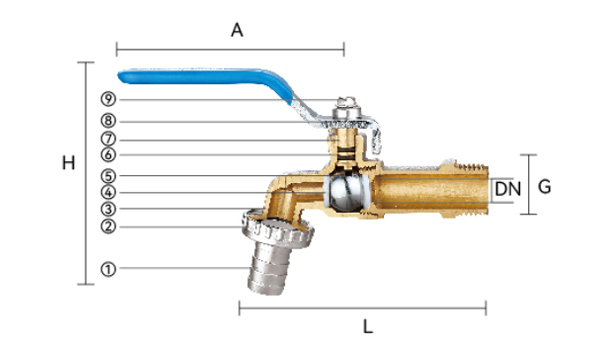

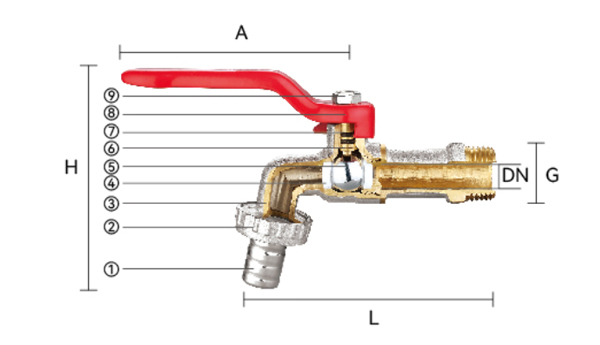

| Description | Raw Material | |
| 1 | Nipple | Brass |
| 2 | Lock Nut | Brass |
| 3 | Body | Brass |
| 4 | Seal Ring | PTFE |
| 5 | Ball | Brass |
| 6 | Stem | Brass |
| 7 | 0-Ring | NBR |
| 8 | Handle | Iron |
| 9 | Screw | Iron |

| G | DN | L | H | A |
| 1/2 | 10 | 90 | 82 | 85 |
| 3/4 | 12 | 100 | 90 | 95 |
| 1 | 15 | 106 | 101 | 95 |
| Description | Raw Material | |
| 1 | Nipple | Brass |
| 2 | Lock Nut | Brass |
| 3 | Body | Brass |
| 4 | Seal Ring | PTFE |
| 5 | Ball | Brass |
| 6 | O-Ring | NBR |
| 7 | Stem | Brass |
| 8 | Handle | lron |
| 9 | Screw | lron |

| G | DN | L | H | A |
| 1/2 | 10 | 90 | 90 | 90 |
| 3/4 | 12 | 100 | 102 | 103 |
| 1 | 15 | 106 | 107 | 103 |

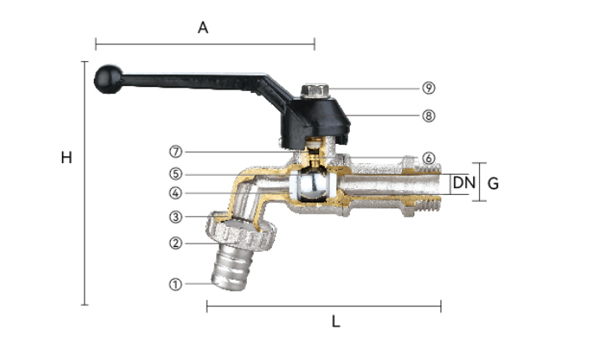

| Description | Raw Material | |
| 1 | Nipple | Brass |
| 2 | Lock nut | Brass |
| 3 | Body | Brass |
| 4 | Seal Ring | PTFE |
| 5 | Ball | Brass |
| 6 | Stem | Brass |
| 7 | 0-Ring | NBR |
| 8 | Handle | Aluminum |
| 9 | Screw | lron |

| G | DN | L | H | A |
| 1/2 | 10 | 90 | 93 | 86 |
| 3/4 | 12 | 100 | 105 | 86 |
| 1 | 15 | 106 | 110 | 86 |

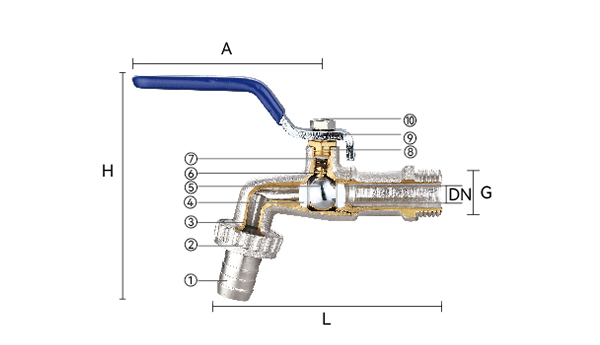

| Description | Raw Material | |
| 1 | Nipple | Brass |
| 2 | Lock Nut | Brass |
| 3 | Body | Brass |
| 4 | Pipe | Brass |
| 5 | Seal Ring | PTFE . |
| 6 | Ball | Brass |
| 7 | Stem | Brass |
| 8 | 0-Ring | NBR |
| 9 | Handle | Aluminum |
| 10 | Screw | lron |

| G | DN | L | H | A |
| 1/2 | 10 | 90 | 82 | 52 |
| 3/4 | 12 | 100 | 94 | 52 |
| 1 | 15 | 106 | 96 | 52 |

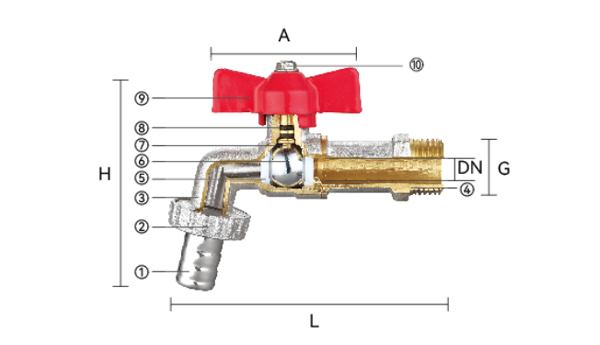

| Description | Raw Material | |
| 1 | Nipple | Brass |
| 2 | Lock Nut | Brass |
| 3 | Body | Brass |
| 4 | Seal Ring | PTFE |
| 5 | Ball | Brass |
| 6 | Stem | Brass |
| 7 | O-Ring | NBR |
| 8 | Lock Nut | Brass |
| 9 | Handle | Iron |
| 10 | Screw | lron |

| G | DN | L | H | A |
| 1/2 | 10 | 90 | 90 | 81 |
| 3/4 | 10 | 93 | 90 | 81 |

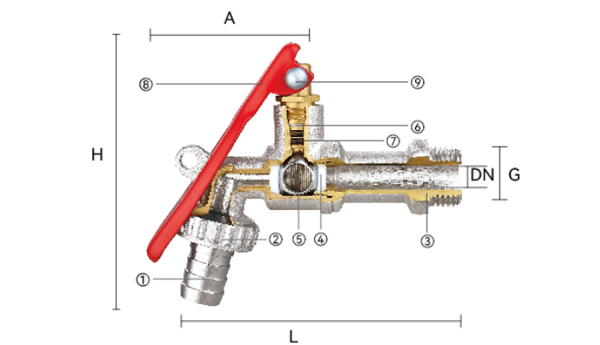

| Description | Raw Material | |
| 1 | Nipple | Brass |
| 2 | Body | Brass |
| 3 | Lock nut | Brass |
| 4 | Seal Ring | PTFE |
| 5 | Ball | Brass |
| 6 | Stem | Brass |
| 7 | 0-Ring | NBR |
| 8 | Lock Nut | Brass |
| 9 | Handle | lron |

| G | DN | L | H | A |
| 1/2x1/2 | 8 | 83 | 93 | 90 |
| 1/2x3/4 | 8 | 83 | 93 | 90 |
| 3/4x3/4 | 9 | 84 | 93 | 90 |
| Description | Raw Material | |
| 1 | Nipple | Brass |
| 2 | Lock Nut | Brass |
| 3 | Body | Brass |
| 4 | Seal Ring | PTFE |
| 5 | Ball | Brass |
| 6 | Stem | Brass |
| 7 | O-Ring | NBR |
| 8 | Handle | Aluminum |
| 9 | Screw | lron |

| G | DN | L | H | A |
| 1/2 | 10 | 86 | 92 | 90 |
| 3/4 | 13 | 102 | 93 | 90 |
| 1 | 15 | 104 | 112 | 116 |
| Description | Raw Material | |
| 1 | Nipple | Brass |
| 2 | Lock Nut | Brass |
| 3 | Body | Brass |
| 4 | Pipe | Brass |
| 5 | Seal Ring | PTFE |
| 6 | Ball | Brass |
| 7 | Stem | Brass |
| 8 | O-Ring | NBR |
| 9 | Handle | Aluminum |
| 10 | Screw | lron |

| G | DN | L | H | A |
| 1/2 | 10 | 100 | 93 | 75 |
| 3/4 | 12 | 101 | 94 | 75 |
| Description | Raw Material | |
| 1 | Nipple | Brass |
| 2 | Lock Nut | Brass |
| 3 | Body | Brass |
| 4 | Seal Ring | PTFE |
| 5 | Ball | Brass |
| 6 | Stem | Brass |
| 7 | O-Ring | NBR |
| 8 | Handle | Aluminum |
| 9 | Screw | Iron |

| G | DN | L | H |
| 1/2 | 10 | 90 | 93 |
| 3/4 | 12 | 98 | 100 |

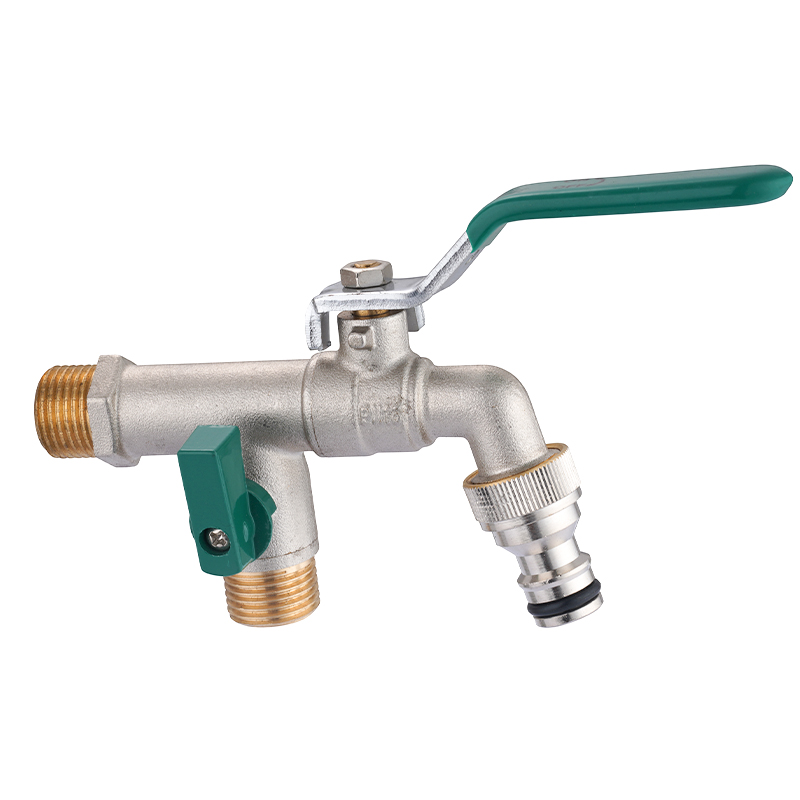

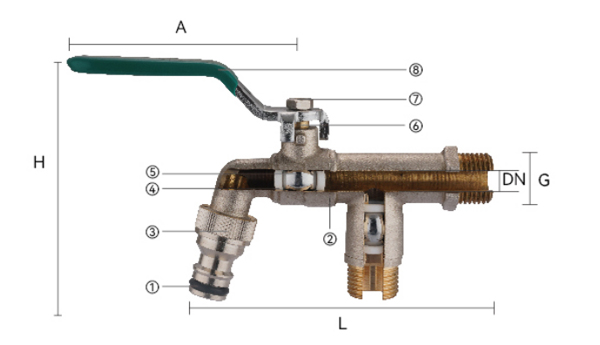

| Description | Raw Material | |
| 1 | Nipple | Brass |
| 2 | Body | Brass |
| 3 | Lock Nut | Brass |
| 4 | Seal Ring | PTFE |
| 5 | Ball | Brass |
| 6 | Stem | Brass |
| 7 | Screw | Brass |
| 8 | Handle | ron |
| 9 | Handle | Aluminum |

| G | DN | L | H | A |
| 1/2x1/2x1/2 | 10 | 115 | 93 | 90 |
| 1/2x3/4x1/2 | 10 | 115 | 93 | 90 |

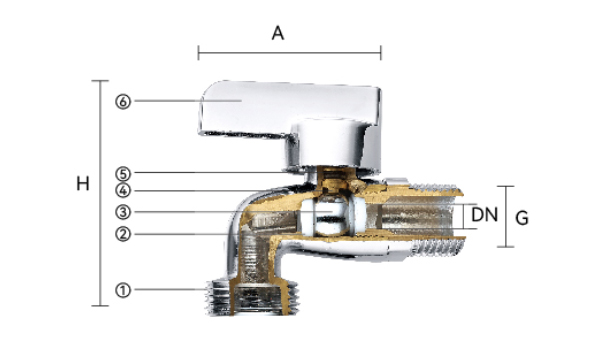

| Description | Raw Material | |
| 1 | Body | Brass |
| 2 | Seal Ring | PTFE |
| 3 | Ball | Brass |
| 4 | Stem | Brass |
| 5 | 0-Ring | NBR |
| 6 | Handle | ABS |

| G | DN | L | H | A |
| 1/2x3/4 | 10 | 59 | 64 | 51 |

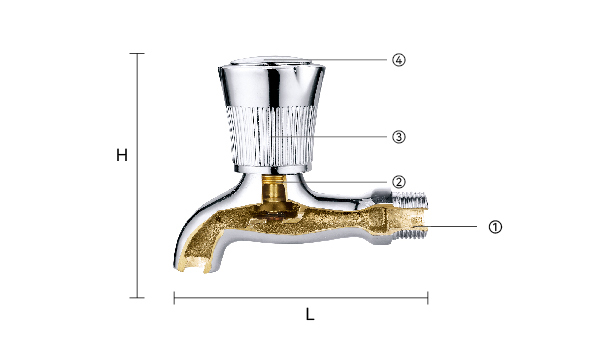

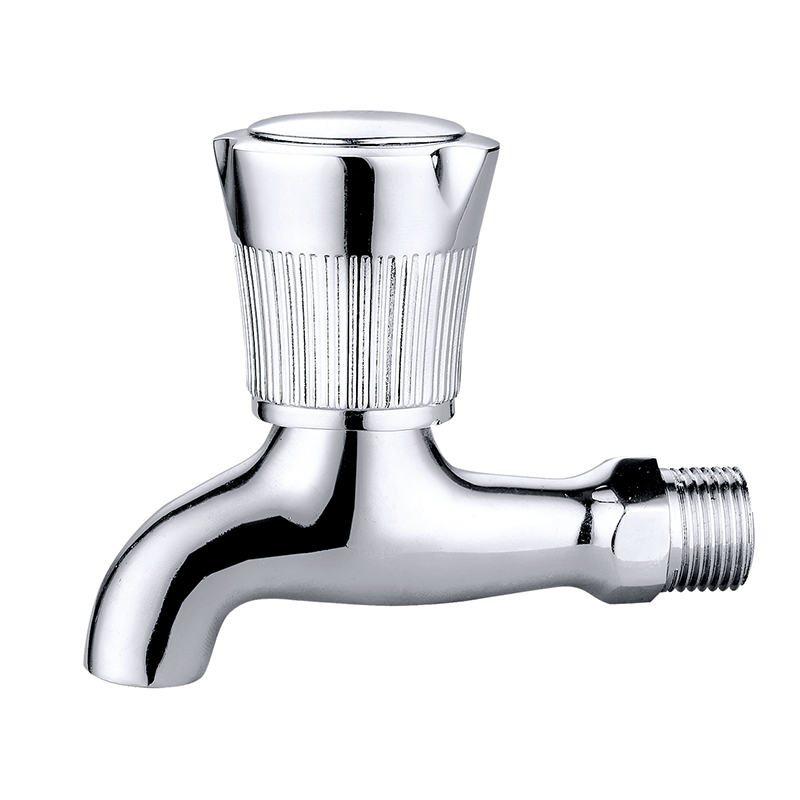

| Description | Raw Material | |
| 1 | Body | Brass |
| 2 | Cartridge | Brass |
| 3 | Handle | Zinc |
| 4 | Logo Cover | ABS |

| G | L | H |
| 1/2 | 100 | 91 |
